Specifications

Maximum Delivery	889 ltrs/min (234.8 gal/min)
Max. Working Pressure	8.6 bar (125 PSI)
Max. Solid Particle Size	10 mm. (0.4")
Air Inlet	3/4" NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	4 metres (13.1 feet)
Fluid Inlet / Outlet	3" BSP Tapered (End Ported) DIN Flanged (Center Ported)
Installation	Surface Mounted
Accessories Included	Exhaust Air Silencer
Shipping Weight	53.5 kg. (117.7 lbs) Aluminium 90 kg. (198 lbs) Cast Iron / Aluminium 90 kg. (198 lbs) Stainless Steel / Aluminium
Shipping Dimensions	720 x 350 x 900 mm 28.3" x 13.8" x 35.4"

Drawings

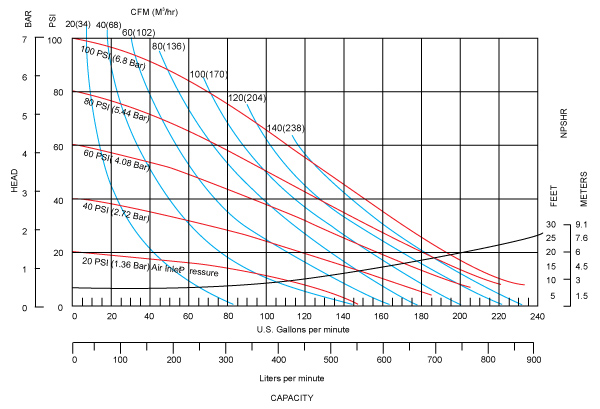

Performance Curve
