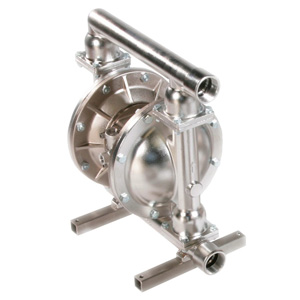

B40 FDA Pump
Product Details
Available in Electro-Polished Stainless Steel with various component material options
Fitted with 2 inch suction/discharge fittings
Operates at a maximum air pressure of 8.6 Bar
Flowrate of 500 litres per minute.
Specifications

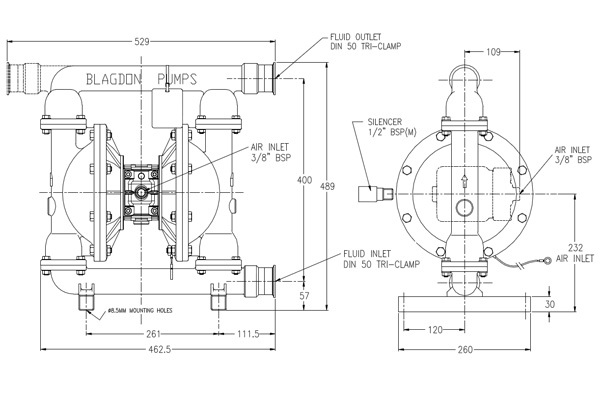

Drawings

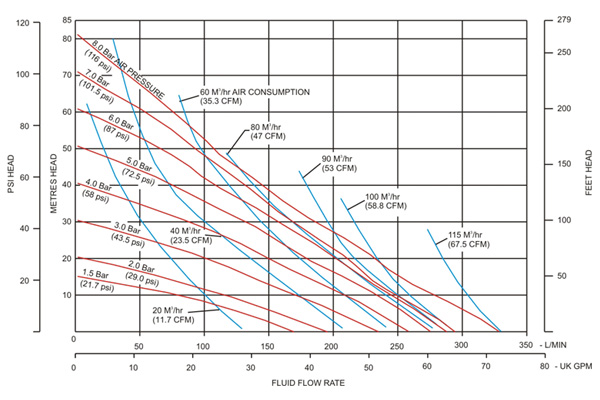

Performance Curve
Specifications
Maximum Delivery
320 ltrs/min (70 gal/min)
Max. Working Pressure
8.6 bar (125 PSI)
Max. Solid Particle Size
6 mm. (0.25")
Air Inlet
3/8" BSP (F)
Temperature Limits
Determined by Elastomers
Fluid Inlet / Outlet
DIN 50 Tri-Clamp (Other Options Available RJT/DIN)
Shipping Weight
42 kg. Stainless Steel / Aluminum
49 kg. Stainless Steel
Shipping Dimensions
-
Drawings
Performance Curve
