Specifications

Maximum Delivery	48 ltrs/min (13 gal/min)
Max. Working Pressure	8 bar (116 PSI)
Max. Solid Particle Size	2 mm. (0.08")
Air Inlet	1/4" NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	4.6 metres (15.1 feet)
Suction Lift (Wet)	6.1 metres (20 feet)
Fluid Inlet / Outlet	1/2" ANSI #150 RF Flanged
Installation	Wall or surface mounted
Accessories Included	Exhaust Air Silencer
Shipping Weight	5.3 kg. (11.7 lbs) polypropylene / aluminum 7 kg. (15.4 lbs) PVDF / aluminum 12 kg. (26.5 lbs) polypropylene / stainless steel 13.5 kg. (29.8 lbs) PVDF / stainless steel
Shipping Dimensions	320 x 200 x 340 mm 12.6" x 7.9" x 13.4"

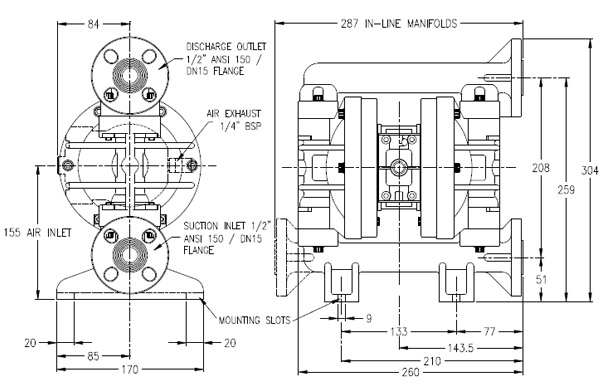

Drawings

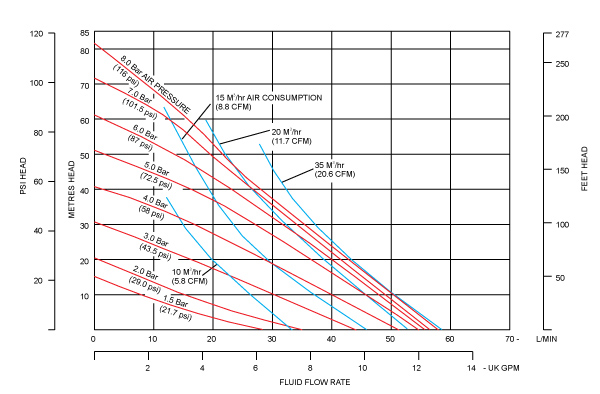

Performance Curve
