Specifications

Maximum Delivery	125 ltrs/min (33 gal/min)
Max. Working Pressure	16 bar (232 PSI)
Max. Solid Particle Size	3 mm. (0.12")
Air Inlet	3/8" NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	6 metres (20 feet)
Suction Lift (Wet)	7.6 metres (24.9 ft)
Fluid Inlet / Outlet	1" BSP / NPT
Installation	Surface mounted
Accessories Included	Exhaust Air Silencer
Shipping Weights	33 kg. (72.8 lbs) stainless steel / aluminum 24.5 kg. (54 lbs) aluminum
Shipping Dimensions	480 x 320 x 480 mm 18.9" x 12.6" x 18.9"

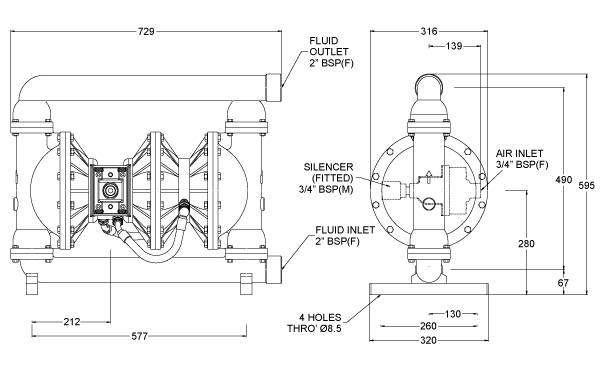

Drawings

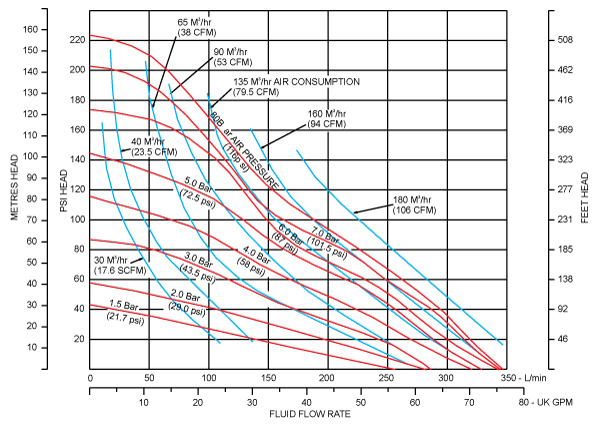

Performance Curve
