Specifications

Maximum Delivery	152 ltrs/min (40 gal/min)
Max. Working Pressure	8 bar (116 PSI)
Max. Solid Particle Size	3 mm. (0.12")
Air Inlet	3/8" NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	6.1 metres (20 feet)
Suction Lift (Wet)	7.6 metres (24.9 feet)
Fluid Inlet / Outlet	1" ANSI #150 Flanged RF
Installation	Wall or surface mounted
Accessories Included	Exhaust Air Silencer
Shipping Weight	13.5 kg. (29.8 lbs) polypropylene / aluminum 18 kg. (39.7 lbs) PVDF / aluminum 18 kg. (39.7 lbs) polypropylene / stainless steel 20 kg. (44.1 lbs) PVDF / stainless steel
Shipping Dimensions	440 x 260 x 470 mm 17.3" x 10.2" x 18.5"

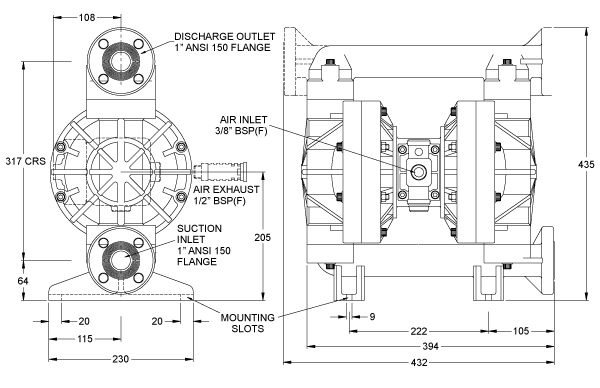

Drawings

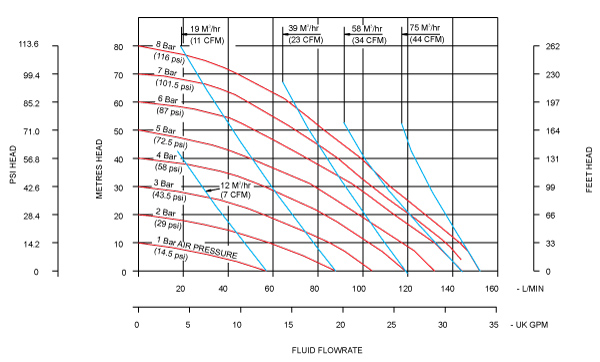

Performance Curve
