Specifications

Maximum Delivery	48 ltrs/min (13 gal/min)
Max. Working Pressure	7 bar (102 PSI)
Max. Solid Particle Size	2 mm. (0.08")
Air Inlet	1/4" NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	4.6 metres (15.1 feet)
Suction Lift (Wet)	6.1 metres (20 feet)
Fluid Inlet / Outlet	1/2" BSP / NPT
Installation	Wall or surface mounted
Accessories Included	Exhaust Air Silencer
Shipping Weight	16 kg. (35.3 lbs) Conductive PTFE 16 kg. (35.3 lbs) Virgin PTFE
Shipping Dimensions	320 x 200 x 340 mm 12.6" x 7.9" x 13.4"

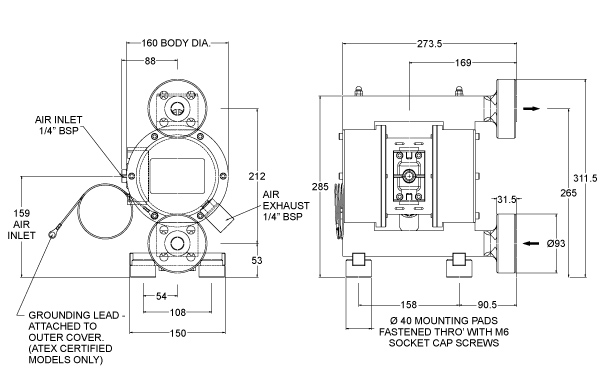

Drawings

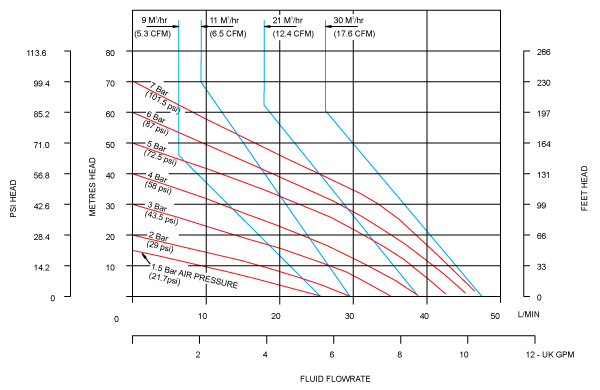

Performance Curve
