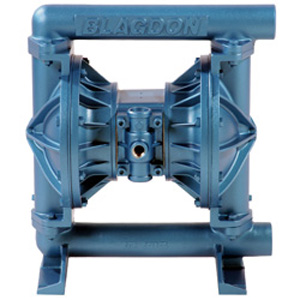

B25 Metallic Pump
Product Details
Material options suitable for a wide range of applications
Simple construction, easy to maintain
Self-priming, ideal for emptying containers
End ported for improved flow
Pressures to 8.6 bar (125 PSI)
Flow rates up to 180 litres/minute (48 gal/min)
Bolted construction for greater integrity
Weighted valve balls for high S.G. and viscous fluids
Reliable pneumatic air valve
Specifications
Drawings
Performance Curve
Specifications
Maximum Delivery
180 ltrs/min (48 gal/min)
Max. Working Pressure
8.6 bar (125 PSI)
Max. Solid Particle Size
3 mm. (0.12")
Air Inlet
3/8" NPT
Temperature Limits
Determined by Elastomers
Suction Lift (Dry)
6.1 metres (20 feet)
Suction Lift (Wet)
7.6 metres (24.9 feet)
Fluid Inlet / Outlet
1" BSP / NPT
Installation
Wall or Surface mounted
Accessories Included
Exhaust Air Silencer
Shipping Weight
16 kg. (35.3 lbs) aluminum
25 kg. (55.1 lbs) cast iron/aluminum
25 kg. (55.1 lbs) stainless steel/aluminum
Shipping Dimensions
400 x 300 x 470 mm, 15.8" x 11.8" x 18.5"
Drawings
Performance Curve
