Specifications

Maximum Delivery	530 ltrs/min (140 gal/min)
Max. Working Pressure	8.6 bar (125 PSI)
Max. Solid Particle Size	6 mm. (0.24")
Air Inlet	3/4" NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	6.1 metres (20 feet)
Suction Lift (Wet)	7.6 metres (24.9 feet)
Fluid Inlet / Outlet	2" ANSI #150 Flanged RF
Installation	Surface mounted
Accessories Included	Exhaust Air Silencer
Shipping Weight	39.5 kg. (87.1 lbs) polypropylene / aluminum 50.5 kg. (111.3 lbs) PVDF / aluminum 50.5 kg. (111.3 lbs) polypropylene / stainless steel 70 kg. (154.3 lbs) PVDF / stainless steel
Shipping Dimensions	630 x 380 x 670 mm 24.8" x 15.0" x 26.4"

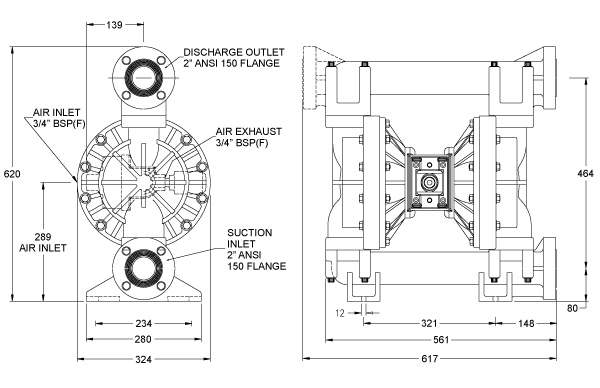

Drawings

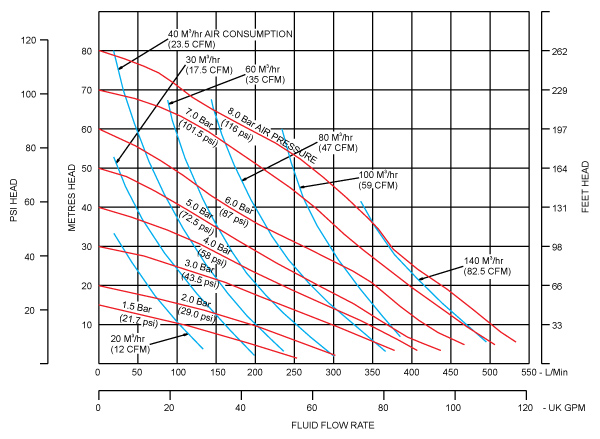

Performance Curve
